BIGFOOT HD IS DESIGNED FOR USE UNDER MECHANICALLY ATTACHED ASPHALT SHINGLES, METAL ROOFING AND TILE, SLATE,CONCRETE & CLAY TILES,REPLACE OF 15# OR 30# FELT
Product Details Features and Advantages Testing | Certifications Construction Download

TECHNICAL SPECIFIATIONS

SPECIFICATIONS PARAMETER
ROLL LENGTH 250'
ROLL WIDTH 48"
ROLL COVERAGE 10 SQ
ROLL WEIGHT 38 LBS
ROLLS/PALLET 30
PALLET WEIGHT 1140 LBS
UV EXPOSURE GUARANTEE 365 DAYS
LIMMITED WARRANTY 50 YRS

FEATURES AND ADVANTAGES

STRONG

35X stronger than 30# felt, 8X lighter than 30# felt. Provides tough durable weather and tear resistance.

GRIPWALK

Unique gray surface offering superior foot traction, and more friction and slip resistance thanstandard roofing felt.

EASY TO HANDLE

Lighter weight rolls for easy Easy handling during all stages of installation.

SIMPLE TO APPLY

Installs quick and easy, provides 17% more coverage per course than a standard roll of and 30# felt.

RELIABLE

Highly water-repellent, reduces warping, wrinkling, and cracking in cold weather.

100% RECYCLABLE

100% inorganic, will not rot or mold, considered a Green competitive with 30# felt.

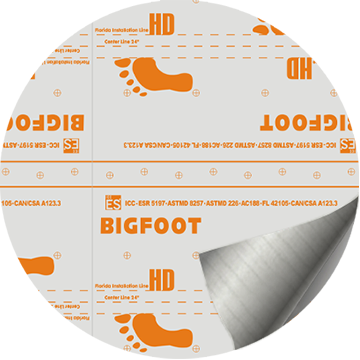

COOL GRAY

Unique gray high-traction top layer which reduces heat and provides a cooler working surface.

SKID- RESISTANT

Anti-slip coating added to enhance the skid-resistant properties of the synthetic roofing underlayment, protecting against costly slips and falls.

ALL WEATHER DEFENSE

TESTING | CERTIFICATIONS

  • ICC-ESR 5197

  • FLORIDA FBC#FL42105

  • ASTM E108 CLASS A

  • ASTM D226 AND ASTM D8257

  • AC188

  • CAN/CSA A123.3

  • TEXAS DEPARTMENT OF INSURANCE

  • RANGE OF TEMPERATURE -40°F TO 240°F

CONSTRUCTION

BIGFOOT HD BARRlER is designed for use under mechanically attached asphalt shingles, metal roofing and tile, replace of 15#or 30#felt.

DECK PREP: All protrusions from the deck area must be removed and ensure the deck has no voids, damaged or unsupported areas. Deck surface should be free of debris, dry and moisture free.

EXTENDED EXPOSURE: BIGFOOT HD BARRIER is not designed for indefinite outdoor exposure(see warranty for exposure time based  on specific product) the final roof covering must be installed in according to BIGFOOT HD BARRIER exposure guidelines. Depending  on roof pitch and surface conditions, it is recommended that roof jacks, toe-boards. or a storage platform be secured to support  roofing material placed on the roof.

Safety Precautions & Limitations: Depending on roof pitch and surface conditions (wet, dusty, frost), the coefficient of friction may  change, and the surface can become slippery. Use caution when walking on the roof deck, and OSHA-compliant fall protection.  BIGFOOT HD BARRIER synthetic underlaymentis not designed as a primary roof covering, and should not be left exposed beyond 30  days prior to installation of the final roofcover. Do not walk or stand on the BIGFOOT HD BARRIER until it is attached to the roof  deck according to installation instructions.
