TECHNICAL SPECIFIATIONS
SPECIFICATIONS | PARAMETER |

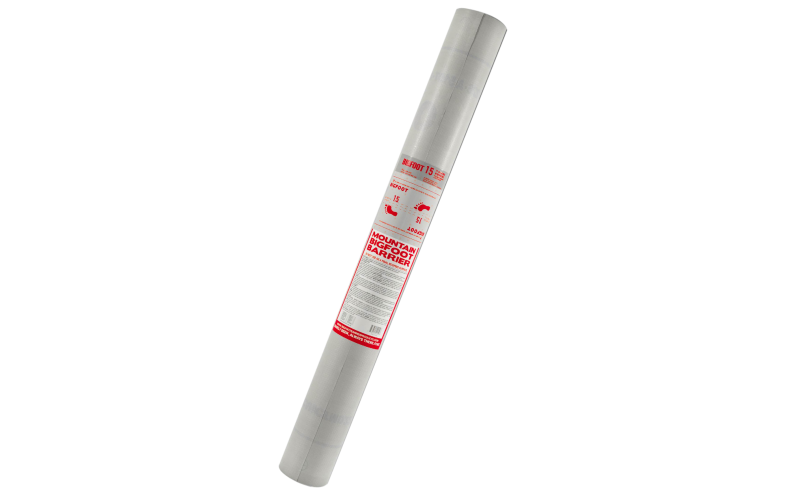

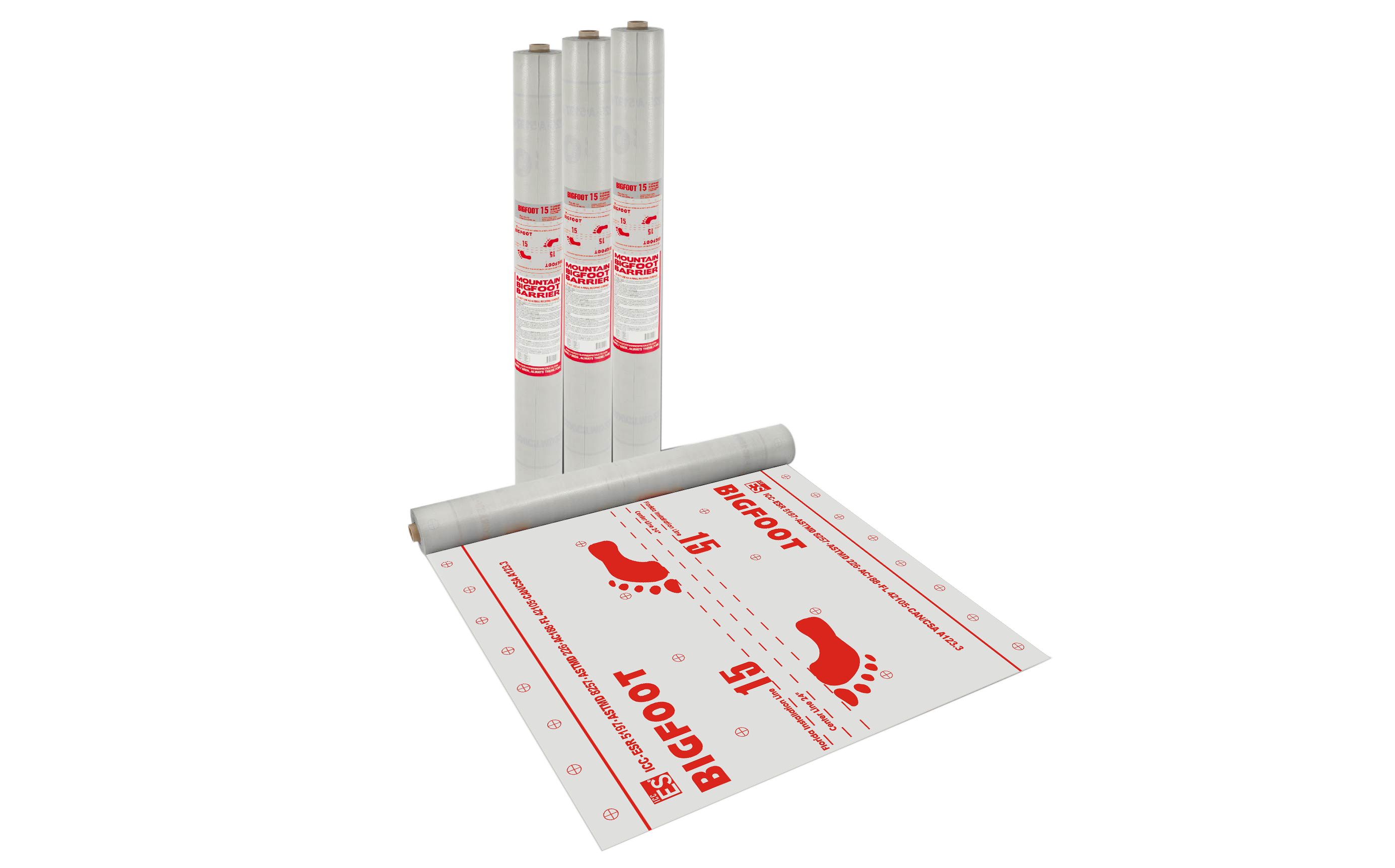

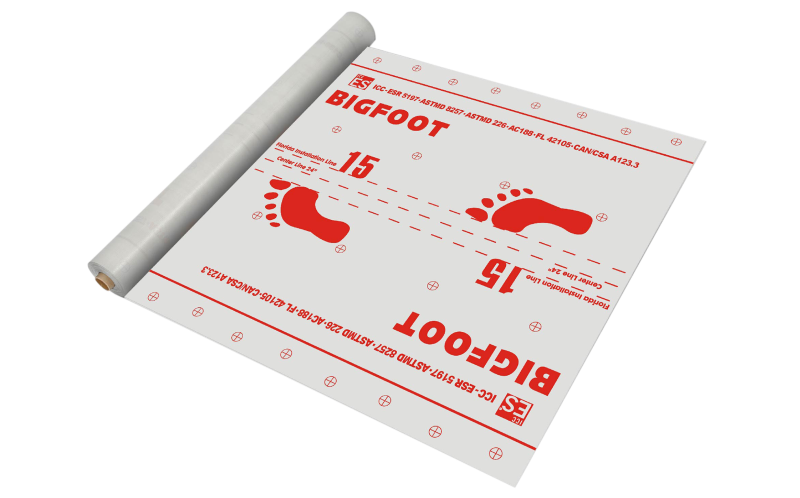

ROLL LENGTH | 250' |
ROLL WIDTH | 48" |
ROLL COVERAGE | 10 SQ |
ROLL WEIGHT | 19 LBS |
ROLL S/PALLET | 72 |
PALLET WEIGHT | 1368 LBS |
UV EXPOSURE GUARANTEE | 90 DAYS |
LIMMITED WARRANTY | 25 YRS |
FEATURES AND ADVANTAGES
STRONG
25X stronger than 15# felt, and 30# felt, 6X lighter than 15# felt and 30# felt. Provides tough durable weather and tear resistance.
GRIPWALK
Unique gray surface offering superior foot traction, and more friction and slip resistance thanstandard roofing felt.
EASY TO HANDLE
Lighter weight rolls for easy Easy handling during all stages of installation.
SIMPLE TO APPLY
Installs quick and easy, provides 17% more coverage per course than a standard roll of 15# felt.
RELIABLE
Highly water-repellent, reduces warping, wrinkling, and cracking in cold weather.
100% RECYCLABLE
100% inorganic, will not rot or mold, considered a Green competitive with 30# felt.
COOL GRAY
Unique gray high-traction top layer which reduces heat and provides a cooler working surface.
SKID- RESISTANT
Anti-slip coating added to enhance the skid-resistant properties of the synthetic roofing underlayment, protecting against costly slips and falls.
ALL WEATHER DEFENSE
TESTING | CERTIFICATIONS
ICC-ESR 5197
FLORIDA FBC#FL42105
ASTM E108 CLASS A
ASTM D226 AND ASTM D8257
AC188
CAN/CSA A123.3
TEXAS DEPARTMENT OF INSURANCE
RANGE OF TEMPERATURE -40°F TO 240°F
CONSTRUCTION
BIGFOOT 15 BARRlER is designed for use under mechanically attached asphalt shingles, metal roofing and tile, replace of 15#or 30#felt.
DECK PREP: All protrusions from the deck area must be removed and ensure the deck has no voids, damaged or unsupported areas. Deck surface should be free of debris, dry and moisture free.
EXTENDED EXPOSURE: BIGFOOT 15 BARRIER is not designed for indefinite outdoor exposure(see warranty for exposure time based on specific product) the final roof covering must be installed in according to BIGFOOT 15 BARRIER exposure guidelines. Depending on roof pitch and surface conditions, it is recommended that roof jacks, toe-boards. or a storage platform be secured to support roofing material placed on the roof.
Safety Precautions & Limitations: Depending on roof pitch and surface conditions (wet, dusty, frost), the coefficient of friction may change, and the surface can become slippery. Use caution when walking on the roof deck, and OSHA-compliant fall protection. BIGFOOT 15 BARRIER synthetic underlaymentis not designed as a primary roof covering, and should not be left exposed beyond 30 days prior to installation of the final roofcover. Do not walk or stand on the BIGFOOT 15 BARRIER until it is attached to the roof deck according to installation instructions.
