ROLL LENGTH
250'
ROLL WIDTH
48"
ROLL COVERAGE
10 SQ
ROLL WEIGHT
19 LBS
ROLL S/PALLET
72
PALLET WEIGHT
1368 LBS
UV EXPOSURE GUARANTEE
90 DAYS
LIMMITED WARRANTY
25 YRS
ROLL LENGTH
250'
ROLL WIDTH
48"
ROLL COVERAGE
10 SQ
ROLL WEIGHT
22 LBS
ROLLS/PALLET
64
PALLET WEIGHT
1408 LBS
UV EXPOSURE GUARANTEE
180 DAYS
LIMMITED WARRANTY
30 YRS
ROLL LENGTH
250'
ROLL WIDTH
48"
ROLL COVERAGE
10 SQ
ROLL WEIGHT
26 LBS
ROLLS/PALLET
56
PALLET WEIGHT
1456 LBS
UV EXPOSURE GUARANTEE
180 DAYS
LIMMITED WARRANTY
40 YRS
ROLL LENGTH
250'
ROLL WIDTH
48"
ROLL COVERAGE
10 SQ
ROLL WEIGHT
38 LBS
ROLLS/PALLET
30
PALLET WEIGHT
1140 LBS
UV EXPOSURE GUARANTEE
365 DAYS
LIMMITED WARRANTY
50 YRS
Methods for Judging the Replacement of Synthetic Underlays: Timely Detection Ensures Safety
2025-01-17
Recently, with the widespread application of synthetic underlays in construction, industry and other fields, how to determine
whether they need to be replaced has become a focus of attention for many users. Correctly judging the replacement time of
synthetic underlays is crucial for ensuring the normal operation and safety of facilities.
Visual Inspection is the First Step

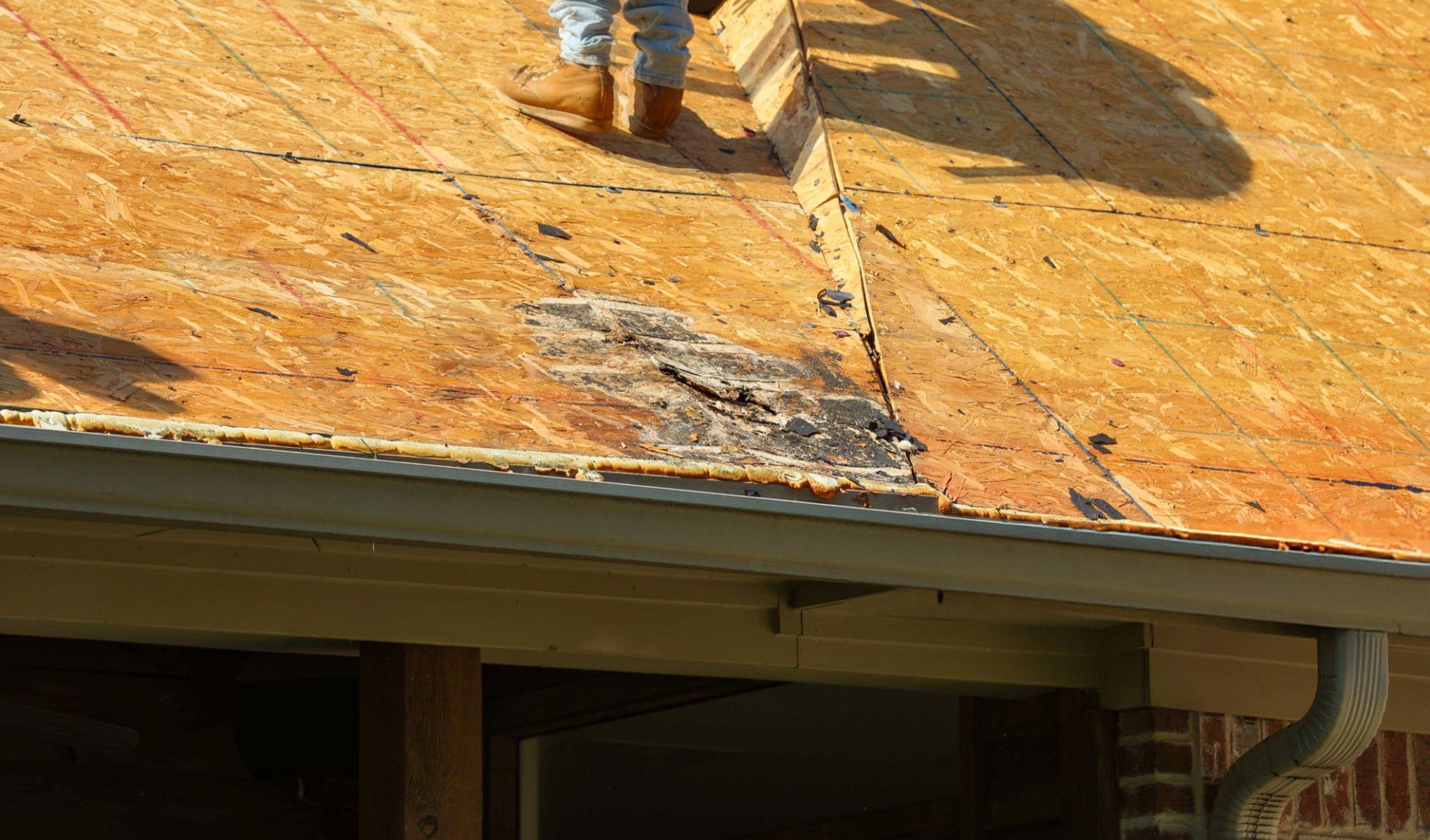

When inspecting synthetic underlays, the first thing is to check whether there is any damage on the surface. Professionals
point out that when carefully examining the surface of the synthetic underlay, special attention should be paid to the
appearance of cracks, holes or tears. For example, for the synthetic underlay used on the roof, if the crack width exceeds
1 - 2 millimeters or the crack length is relatively long, more than 30 centimeters, it may affect its waterproof performance
and replacement may need to be considered. At the same time, the phenomenon of bulging cannot be ignored. Bulging
may be caused by water vapor accumulation under the underlay or incomplete air discharge during installation. If the area
of the bulge is large, accounting for more than 5% of the roof area, or the bulge is increasing continuously, it indicates that
the integrity of the underlay has been damaged, and its waterproof, heat - insulation and other functions may be greatly
reduced, so it should be replaced in a timely manner. In addition, the color change of the underlay is also an important
observation point. If there is fading, discoloration, especially uneven color change, or the underlay loses its original luster,
becomes dull and the material becomes brittle, this may be the result of material aging caused by long - term exposure to
sunlight and ultraviolet radiation, and replacement may also need to be considered.
Performance Testing is Key
In addition to visual inspection, performance testing is equally crucial. In terms of waterproof performance testing, a simple
water - pouring test can be carried out to observe whether water can penetrate under the underlay. If water can penetrate
easily, it indicates that the waterproof layer of the underlay has failed. At the same time, use professional humidity detection
instruments to check the humidity under the underlay and inside the roof structure. If the humidity is significantly higher than
the normal range, such as the relative humidity exceeding 70%, it may mean that the waterproof function of the underlay has
problems and replacement is needed. In terms of heat - insulation performance evaluation, the heat - insulation performance
of the underlay can be initially judged by comparing the indoor and outdoor temperatures. If the indoor temperature is
significantly higher than the same period in previous years during hot weather, and the factors such as air - conditioner failure
have been excluded, it may be that the heat - insulation function of the underlay has declined. In addition, professional thermal
imaging cameras can also be used to detect the temperature distribution of the roof surface and the indoor ceiling. If the
temperature difference is found to be small, it indicates that the heat - insulation effect of the underlay is not good and
replacement may be required.
Service Life Consideration is Necessary
The service life of synthetic underlays is also an important factor in judging whether replacement is needed. Different types of
synthetic underlays have different nominal service lives. The nominal service life of ordinary polyvinyl chloride (PVC) synthetic
underlays may be about 10 - 15 years, while that of high - quality ethylene - propylene - diene monomer (EPDM) synthetic
underlays can reach more than 20 years. Even if there are no obvious signs of damage to the underlay at present, if it has
approached or exceeded its nominal service life, its performance changes should be closely monitored, and preventive
replacement of the underlay can be considered to avoid potential problems. At the same time, if the underlay is exposed to
harsh environments for a long time, such as being eroded by salt spray near the sea, polluted by chemical substances in
industrial pollution areas, or in areas with high ultraviolet radiation, its actual service life may be shorter than the nominal life.
For example, for buildings near the sea, due to the corrosive effect of salt in the salt spray on the underlay material, the service
life of the underlay may be shortened by 30% - 50%. In such cases, it should be judged in advance whether replacement is
needed according to the actual situation.
Experts remind that the inspection and replacement of synthetic underlays should be carried out regularly, and it is best to be
operated by professionals to ensure the quality of inspection and replacement and to guarantee the safety and stable operation
of the facilities.
